Getting Started with LLVM

Covers turning on LLVM compilation for a project or for a single procedure, the options that control it, and its current limitations.

Note

This page describes twinBASIC BETA 984 and later. Earlier builds have no LLVM settings in Project Settings or IDE Options.

What is LLVM?

LLVM is an optional part of the compiler that produces code highly optimized for performance and size. Most applications benefit from it; how much depends on the code. LLVM is built into twinBASIC: it does not need a separate LLVM installation, and twinBASIC ignores one if it is present.

During compilation, LLVM translates your code into an intermediate representation — a form between the twinBASIC source and the final machine code. It then reorganizes that representation with a wide variety of techniques, such as removing code that can never run (dead code elimination), simplifying loops, rewriting arithmetic to avoid slow operations like division, and inlining functions. Where it applies, LLVM can also make your code use CPU features designed to speed up particular operations.

LLVM in twinBASIC

You turn LLVM on in Project Settings. It is off by default while it is experimental. Project Settings has these options for it:

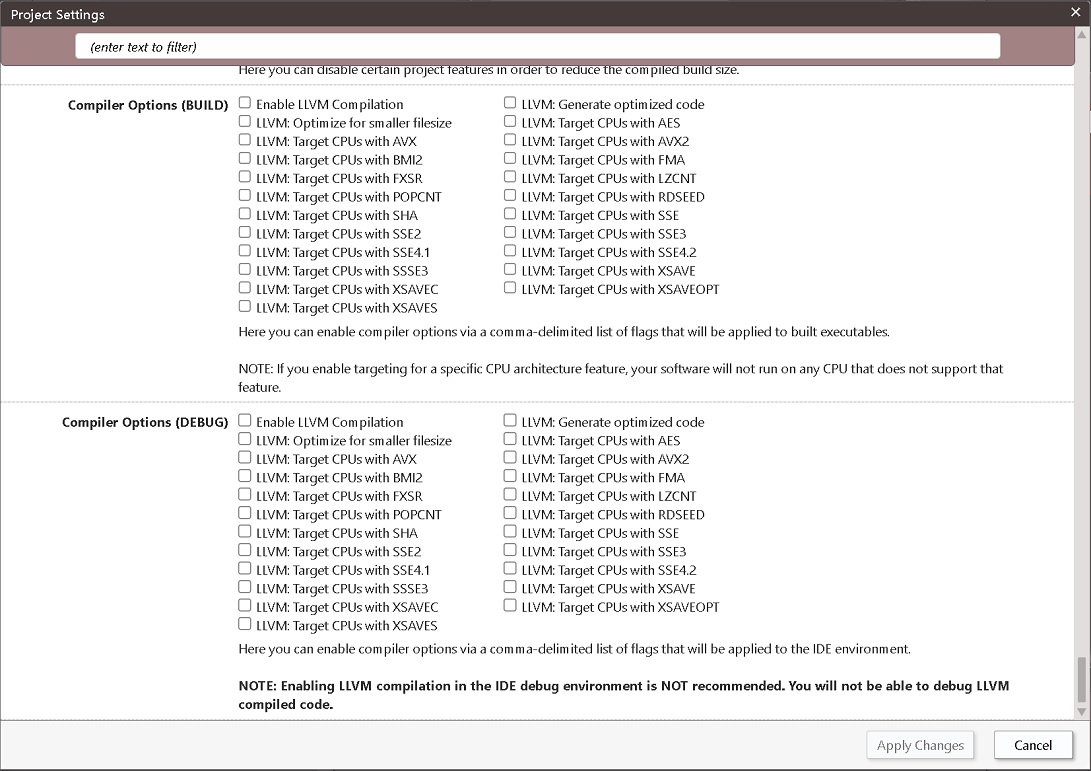

The same options appear in two sections:

• Compiler Options (BUILD) applies when you build the project into an EXE, a DLL or another output file.
• Compiler Options (DEBUG) applies when you run the project from the IDE.

Note

The IDE cannot debug code compiled with LLVM, so turning LLVM on under Compiler Options (DEBUG) is not recommended.

Enable LLVM Compilation turns LLVM on. With only this box ticked, LLVM runs during compilation and creates the intermediate representation of your code, but does not apply the optimizations for performance and size. You will usually want to tick one or both of the next two options as well: LLVM: Generate optimized code and LLVM: Optimize for smaller filesize. Generate optimized code is for optimizing for speed. This is not mutually exclusive with Optimize for smaller filesize, and when both are enabled, LLVM determines if an optimization doesn’t provide a significant enough benefit to be worth the size increase.|

The remaining options, from LLVM: Target CPUs with AES to LLVM: Target CPUs with XSAVES, are for CPU features that not every CPU has. They range from features that almost every CPU from the last 25 years has, to features that only recent CPUs have. CPU feature availability below gives an overview.

Important

If you tick a CPU feature that the CPU running your program does not have, the program crashes or does not run at all.

When LLVM is on, a progress dialog appears when you build or run your program showing the completion percentage of the build process. For large applications, and for applications with very large individual procedures, compiling with LLVM can take much longer than the standard compiler. A very large application can take several minutes or more to compile, depending on your hardware.

twinBASIC keeps a cache of compiled code, so later builds are usually much faster: code that has not changed is not compiled again. To clear the cache and compile everything on the next build, choose Flush the LLVM compiler cache on the Tools menu.

Availability

LLVM compilation is not available with the free Community Edition licence, and twinBASIC ignores the LLVM settings there. With a Personal Edition licence, LLVM compiles only the built-in packages. All other paid editions can use LLVM in full. The FAQ describes the editions.

Current limitations

Operating system support

Building with LLVM does not currently work on Windows 7; Windows 10 or 11 is recommended. Windows 8 and 8.1 have not been tested yet. The limit applies only to the computer that builds the program: a program built with LLVM runs on Windows 7.

Language support

The main feature not yet supported is passing an error up to the calling procedure. If an error occurs in a procedure that has no error handler, its caller does not receive the error; instead, the program crashes with an unhandled error. A fix is planned.

All other language features should work, in both 32-bit and 64-bit builds. Please report any crash that LLVM causes, and any message saying “a feature used in your code is not yet supported with the LLVM compiler”.

General LLVM options

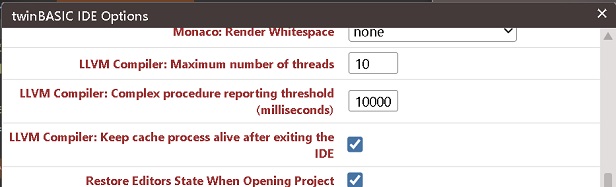

Besides the project settings, three settings in IDE Options control how LLVM works when it is on:

LLVM Compiler: Maximum number of threads

The number of threads the LLVM compiler can create. More threads can make LLVM compilation faster, but use more memory. If LLVM compilation starts to crash, this value is probably too high, and lowering it should stop the crashes. The default is 1, but newer computers can probably handle 10 or more.

LLVM Compiler: Complex procedure reporting threshold (milliseconds)

A compile time. Every procedure that takes at least this long to compile is listed in the Debug Console, which shows the procedures you may want to split up to reduce compile time. The default is 10000 milliseconds, which is 10 seconds.

LLVM Compiler: Keep cache process alive after exiting the IDE

Keeps the LLVM cache running after you exit the IDE, so that LLVM does not have to do a long full compile again. It is on by default.

Per-procedure LLVM options

To reduce compile time, or to work around a procedure that LLVM reports problems with, use the CompilerOptions attribute with an empty string. It turns LLVM off for that procedure and keeps it on for the rest of your code:

[CompilerOptions("")]
Public Sub DoNotOptimizeMe()
    ' ...
End Sub

The same attribute can also turn LLVM on for chosen procedures when it is off in Project Settings. List the flags, separated by commas: +llvm, +optimize and +optimizesize, then + and the name of each CPU instruction set to use. Each flag is the direct equivalent of an option in Project Settings:

+llvm

Enable LLVM Compilation

+optimize

LLVM: Generate optimized code

+optimizesize

LLVM: Optimize for smaller filesize

The flags for CPU instruction sets, one for each LLVM: Target CPUs with box, are +aes, +avx, +avx2, +bmi2, +fma, +fxsr, +lzcnt, +popcnt, +rdseed, +sha, +sse, +sse2, +sse3, +sse4.1, +sse4.2, +ssse3, +xsave, +xsavec, +xsaveopt and +xsaves.

For example:

[CompilerOptions("+llvm,+optimize,+optimizesize")]
Function Multiply(A As Long, B As Long) As Long
    Return A * B
End Function

[CompilerOptions("+llvm,+optimize,+optimizesize,+aes,+avx,+avx2,+bmi2,+fma,+fxsr,+lzcnt,+popcnt,+rdseed,+sha,+sse,+sse2,+sse3,+sse4.1,+sse4.2,+ssse3,+xsave,+xsavec,+xsaveopt,+xsaves")]
Sub FullyOptimizeMe()
    ' ...
End Sub

CPU feature availability

For each CPU feature, the table gives the first Intel and AMD CPUs to offer it, and the year from which all new Intel and AMD CPUs shipped with it. The last column is an estimate: some rare models, such as specialized CPUs for embedded use, may still have lacked the feature.

Feature	First available (Intel)	First available (AMD)	In all new CPUs from
AES	2010 (Westmere)	2011 (Bulldozer)	2016
AVX	2011 (Sandy Bridge)	2011 (Bulldozer)	2022
AVX2	2013 (Haswell)	2015 (Excavator)	2022
BMI2	2013 (Haswell)	2015 (Excavator)	2022
FMA	2013 (Haswell)	2012 (Piledriver)	2022
FXSR	1997 (Pentium II)	1999 (Athlon)	2011; all x64 CPUs
LZCNT	2013 (Haswell)	2007 (K10/Phenom)	2022
POPCNT	2008 (Nehalem)	2007 (K10/Phenom)	2013
RDSEED	2014 (Broadwell)	2017 (Zen)	2020
SHA	2016 (Atom)	2017 (Zen)	2022
SSE	1999 (Pentium III)	2001 (Athlon XP)	2002; all x64 CPUs
SSE2	2000 (Pentium 4)	2003 (Athlon 64)	2005; all x64 CPUs
SSE3	2004 (Pentium 4 Prescott)	2005 (Athlon 64 Rev. E)	2006
SSE4.1	2007 (Penryn)	2011 (Bulldozer)	2013
SSE4.2	2008 (Nehalem)	2011 (Bulldozer)	2013
SSSE3	2006 (Core 2)	2011 (Bobcat)	2013
XSAVE	2009 (Penryn E0/R0)	2011 (Bulldozer)	2016
XSAVEC	2015 (Skylake)	2017 (Zen)	2020
XSAVEOPT	2011 (Sandy Bridge)	2017 (Zen)	2017
XSAVES	2015 (Skylake)	2017 (Zen)	2020

FXSR, SSE and SSE2 are part of the base feature set that every x64 CPU must support, so 64-bit builds always use them when optimization is on.

Future of LLVM support

This is the first release of LLVM support in twinBASIC, and the groundwork for making much more use of the optimizations and features that LLVM provides. Later releases will restructure parts of the twinBASIC compiler to get the most from LLVM and to improve the performance of your code.
