Designer

A form is two files, a designer file and a code file. This page describes how to create a form, how to open its designer, how to move between design and code, and the parts of the designer window. It then describes the settings of the surface: grid, outlines, zoom, locks and tab order. Working with controls describes what you do on the surface.

Add a form

The Add menu creates a form. It is in the right-click menu of the Project Explorer, and in the Project menu. The Windows items and the CustomControls item are always shown, whether the project refers to their package or not.

Item Creates Package it needs
Add Windows Form MyForm.tbform and MyForm.twin WinNativeForms
Add Windows MDI Form MyForm.tbform and MyForm.twin, for an MDI form WinNativeForms
Add Windows UserControl MyUserControl.tbcontrol and MyUserControl.twin WinNativeForms
Add Windows PropertyPage MyPropertyPage.tbppage and MyPropertyPage.twin WinNativeForms
Add Windows Report MyReport.tbreport and MyReport.twin. See Designing reports. WinNativeForms
Add CustomControls Form MyForm.tbform and MyForm.twin CustomControls
Add name Form A form of a kind that a package supplies, one item for each kind. That package

The new files go into the folder that the Project Explorer has selected. The Project Explorer switches to its file view, and a name box opens in the tree. It holds the default name, MyForm.tbform for a form, with the name part selected. If the name is taken, the box offers MyForm2, MyForm3 and so on.

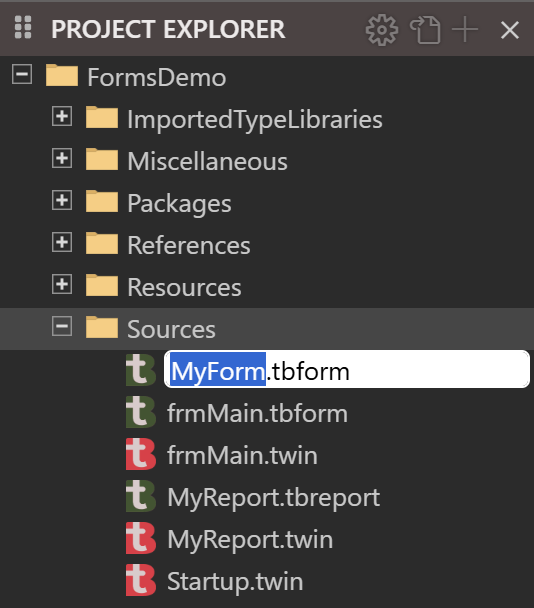

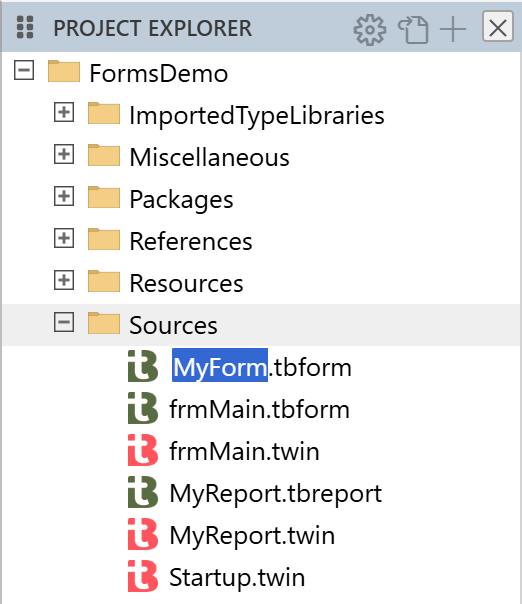

The Project Explorer in its file view with the Sources folder expanded. The first row under Sources is a name box holding MyForm.tbform, with MyForm selected; the project’s own files follow it.The Project Explorer in its file view with the Sources folder expanded. The first row under Sources is a name box holding MyForm.tbform, with MyForm selected; the project’s own files follow it.

Enter creates both files at once and opens the designer in a normal tab, not a preview tab. Esc, or an empty name, creates nothing. A name with a space is written in square brackets, such as Class [My Form], both in the class and in the form’s Name property. A Windows form, an MDI form and a report are bracketed for a punctuation mark too, such as the dot in a.b. A user control, a property page and a CustomControls form are bracketed for a space only.

Note

In twinBASIC BETA 1005, the name box accepts a name that is not an identifier, such as 1bad, and creates the files without a message. The class is then Class 1bad.

What the new files hold depends on the kind:

Kind Designer file Code file
Windows form A form 300 pixels wide and 300 high, with StartUpPosition vbStartUpScreen. The attributes [Description("")], [FormDesignerId("...")] and [PredeclaredId], and Class MyForm with an empty Sub New().
MDI form As a form, without the start-up position. As a form.
CustomControls form A form 300 pixels wide and 300 high. As a Windows form.
User control A control 300 pixels wide and 300 high. As a form, and also [ClassId], [InterfaceId], [EventInterfaceId] with new GUIDs, and [COMControl].
Property page As a user control. As a user control, without [COMControl].
Report Five sections. Class MyReport with Sub New() and an empty Sub Report_Load().

The designer file holds only these few properties at first. When you save, the file also holds every property the compiler reports for the form and its controls.

The package prompts

If the project does not refer to the package an item needs, the item shows a box titled twinBASIC instead of creating a form. It reads Package needed and the package’s name, and says that you must first add a reference to the package, and that the compiler restarts after you click the button.

A twinBASIC message box headed Package needed: CustomControls, saying that a reference to the CustomControls package must be added to the project first and that the compiler will be restarted once it is, above an Add CustomControls package button and a Cancel button.A twinBASIC message box headed Package needed: CustomControls, saying that a reference to the CustomControls package must be added to the project first and that the compiler will be restarted once it is, above an Add CustomControls package button and a Cancel button.
A twinBASIC message box headed Package needed: WinNativeForms, saying that a reference to the WinNativeForms package must be added to the project first and that the compiler will be restarted once it is, above an Add WinNativeForms package button and a Cancel button.A twinBASIC message box headed Package needed: WinNativeForms, saying that a reference to the WinNativeForms package must be added to the project first and that the compiler will be restarted once it is, above an Add WinNativeForms package button and a Cancel button.

The button, Add WinNativeForms package or Add CustomControls package, adds the reference and restarts the compiler. It creates no form. Choose the Add item again to create one. Cancel creates nothing.

Open a designer

A designer opens for any of its four kinds of file when you open the file:

  • Double-click it in the Project Explorer, or single-click when File Explorer: Single-Click Preview is on. See IDE Options.
  • Open it from OPEN EDITORS, or double-click a row in DIAGNOSTICS that names it.
  • Create it with an Add item.

Opening a designer ends a form program that waits for input. See Running.

A file that the designer cannot use opens in one of three ways:

  • A form from a package, such as the designers in the VB package, is read-only. The IDE shows the notification Can’t open designer for a read-only document.
  • A file with a JSON error shows the notification ERROR: bad JSON encountered when parsing tbform.
  • A file without a FormDesignerId opens normally. The designer makes a new id for the session and does not write it to the file.

Note

In twinBASIC BETA 1005, a read-only designer file still gets a tab, which is empty and selected. Close it.

Note

In twinBASIC BETA 1005, a form file with a JSON error opens an empty designer with no controls, and PROPERTIES is empty. An edit there is refused, and Ctrl+S leaves the file as it was, so nothing is lost. Correct the JSON in a text editor outside the IDE, and open the form again.

The two files of a form

A form’s designer file and its .twin file belong together. Renaming one in the Project Explorer asks Rename the partner to the new name also?, and YES renames both. Delete Permanently on one of the pair offers Delete Both, Delete the file’s name, and Cancel, when the IDE asks before it deletes files. See IDE Options for File Explorer: Ask Before Delete Files.

View a form as JSON

View As JSON in the Project Explorer’s right-click menu shows the designer file as text. It is in the menu for .tbform, .tbcontrol, .tbppage and .tbreport files and for the files in a package, and it is hidden when more than one item is selected. The text opens in a read-only tab titled JSON: 'frmMain.tbform':. A comment at its top gives the URI: of the file and the SNAPSHOT: time. The tab is a snapshot and does not follow later changes, but it includes the changes in the designer that you have not saved yet.

Switch between design and code

Three commands open the code file from the designer:

  • The toolbar button Switch Between Form And Code.
  • View → Code Editor.
  • View Code in the designer’s right-click menu.

None of them has a key. The code file opens in a normal tab, or in a preview tab when File Explorer: Single-Click Preview is on.

From the code file, View → Object Designer and Shift+F7 open the designer. The command looks for a .tbform, then a .tbcontrol, a .tbppage and a .tbreport with the same name. The toolbar button works from either side. F7 and Esc do nothing in a designer.

Both switches find the partner file by replacing .twin or .tbform in the path. If the file has no partner, a notification says Unable to switch form design mode: this document is not part of a form.

Note

In twinBASIC BETA 1005, a folder whose name contains .twin, such as v1.twin.forms, breaks the switch from the code to the designer, and the notification above appears. The switch from the designer to the code still works. Open the designer from the Project Explorer, or rename the folder.

The parts of the window

The designer uses the IDE’s toolbar for its buttons. A button is greyed out unless the context of its command holds. The Toolbar page names them. A few need explaining:

  • The grid button opens a small panel of options when the pointer enters it.
  • The zoom box sets the size of the surface. See Zoom.
  • PREVIEW, titled Launch the form in isolation to test its functionality, runs the form on its own. See Previewing a form.
The form designer open on a tab named MyForm.tbform in Editor 1. An empty form occupies the top left corner as a white dotted grid, with a plus menu button above it, sizing handles on its right and bottom edges, and a 300 x 300 size readout at its lower corner.The form designer open on a tab named MyForm.tbform in Editor 1. An empty form occupies the top left corner as a white dotted grid, with a plus menu button above it, sizing handles on its right and bottom edges, and a 300 x 300 size readout at its lower corner.
Part What it is
Form Menu bar The strip above a form where its menus are designed. It has a + menu button. See Menu editor.
The surface The form’s client area, drawn from the compiler’s picture of it.
Size handles Three handles on the form’s right edge, bottom edge and bottom-right corner resize the form. The five others, on the top and left edges and the other corners, are drawn dimmer and do nothing. See Size the form.
Readouts While you are not drawing, dragging or sizing a control, the pointer position (x: and y:) shows at the lower left of the surface and the form’s size at the lower right, whatever is selected. While you draw, drag or size a control, its position and size show instead, and they disappear when you release the button. The readouts are always in pixels.
Grabbers Eight small circles round a selected control. A docked control has fewer. A locked control shows a lock icon.
Tab-index badges Yellow circles that show while you hold Ctrl. See Tab order.
In-place toolbar The small bar below a selected control. See In-place editing.
A form in the designer at 100 %, with a File menu and the + menu button in the bar above it. The form holds two text boxes, a label, two command buttons, a check box, a frame round one of the text boxes, and a control array of two buttons. The label is selected: eight round grabbers surround it, and a bar of editing buttons sits below it. Under the form, a box at the left shows the pointer position and one at the right the form’s size, 380 x 270. Labels with arrows name the grabbers, the bar and the two boxes.A form in the designer at 100 %, with a File menu and the + menu button in the bar above it. The form holds two text boxes, a label, two command buttons, a check box, a frame round one of the text boxes, and a control array of two buttons. The label is selected: eight round grabbers surround it, and a bar of editing buttons sits below it. Under the form, a box at the left shows the pointer position and one at the right the form’s size, 380 x 270. Labels with arrows name the grabbers, the bar and the two boxes.

While the designer loads, an overlay lists the steps of the connection to the compiler, with a progress bar. A failure reads error 802; connection closed, 803 connection errored or 804 connection abandoned. Ignore and continue hides the overlay. The overlay shows for a fraction of a second on a normal start.

A touch screen works too. A one-finger drag with a tool selected draws a control, and a pinch with two fingers zooms.

Grid and outlines

The grid options are in the panel that opens when the pointer enters the grid button.

Show Grid
Default on. Draws the grid as dots on the surface.
Align Controls To Grid
Default off. Snaps a control to the grid when you draw, drag or size it, and moves it by one grid cell for each arrow key press.
Show Outlines
Default off. Draws a dashed outline round every control, useful for a control with no visible border.
Multi-coloured Grabbers
On for a new form. A form file that lacks the setting opens with it off. With it on and several controls selected, the grabbers of each control have a different colour, so the controls can be told apart.
Grid Width and Grid Height
Default 10 pixels each. The smallest value is 1.
The grid options panel open below the grid button of the toolbar. Show Grid and Multi-coloured Grabbers are ticked, Align Controls To Grid and Show Outlines are not, and Grid Width and Grid Height each hold 10.The grid options panel open below the grid button of the toolbar. Show Grid and Multi-coloured Grabbers are ticked, Align Controls To Grid and Show Outlines are not, and Grid Width and Grid Height each hold 10.

These options belong to the form. They are saved in the form file, so another form can have another grid. Changing one is an undo step, marks the form changed and refreshes the designer from the compiler.

With Align Controls To Grid on, a position is rounded down to a multiple of the grid size, measured from the container’s top left corner. Format → Align → To Grid snaps the selected controls to the grid at once, whatever the setting. The step of Increase and Decrease in the spacing commands is the grid width or height even when snapping is off. See Arranging controls.

Each toggle is also a command with no menu item and no key: tbFormDesigner_ToggleGridIndicators (the grid button), ToggleAlignControlsToGrid, ToggleControlOutlines, ToggleMultiColouredGrabbers, ToggleLockAllControls, ToggleShowTabIndex and ToggleInPlaceEditingToolbar, each with the tbFormDesigner_ prefix. The grid indicators, the alignment to the grid, the outlines, the in-place toolbar and the tab-index overlay also have TurnOn and TurnOff forms, such as TurnGridIndicatorsOn. Keyboard shortcuts describes how to give any of them a key.

Zoom

The zoom box in the toolbar offers 25 % to 400 % in steps of 25 %. The surface is scaled, and clicks and drags still act in form pixels: at 50 %, a drag of 30 by 12 screen pixels moves a control by 60 by 24 form pixels, and the readouts show form pixels. The zoom belongs to the designer and is not saved.

With a designer focused, the View menu shows Zoom In and Zoom Out in place of Increase Font Size and Decrease Font Size. They have no keys. Zoom has no mouse-wheel shortcut and no key of its own.

The zoom box of the toolbar showing 50 %, with its list open below it and 50 % highlighted between 25 % and 75 %; the list scrolls on to further values.The zoom box of the toolbar showing 50 %, with its list open below it and 50 % highlighted between 25 % and 75 %; the list scrolls on to further values.

Note

In twinBASIC BETA 1005, Zoom Out stops at 50 %, although the box offers 25 %. Choose 25 % in the box.

Lock controls

Format → Lock Controls locks each selected control that is unlocked and unlocks each one that is locked, so a mixed selection swaps. The right-click menu offers Lock Controls and Unlock controls for a selection, and Lock all controls and Unlock all controls on the form itself. Each of the two commands for all controls then selects every control.

A locked control is drawn grey, with a lock icon. You cannot move or size it with the mouse or the keys, and the commands that arrange controls skip it. You can still select, cut, delete and edit it in PROPERTIES. A locked control still counts in the bounding box that the align commands use.

The lock is stored under the control’s name, so it follows a rename, and it covers every member of a control array.

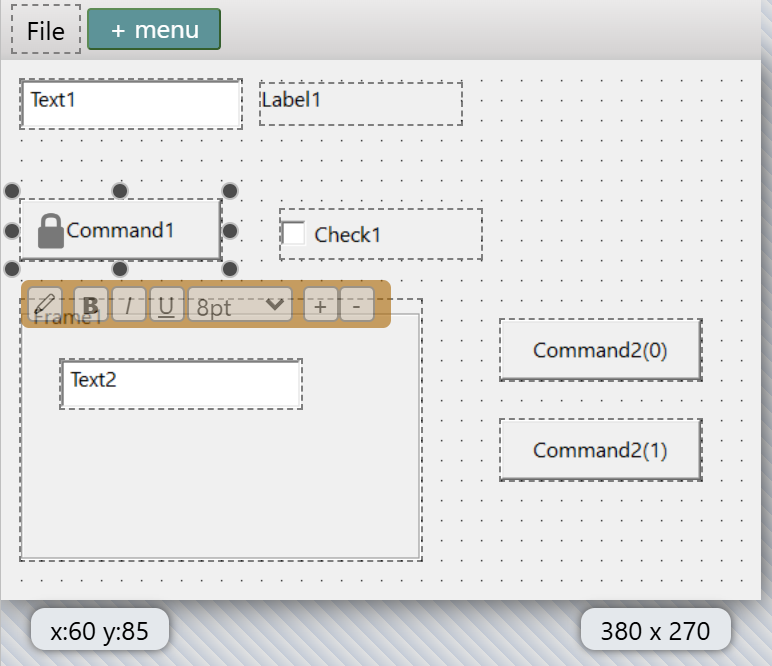

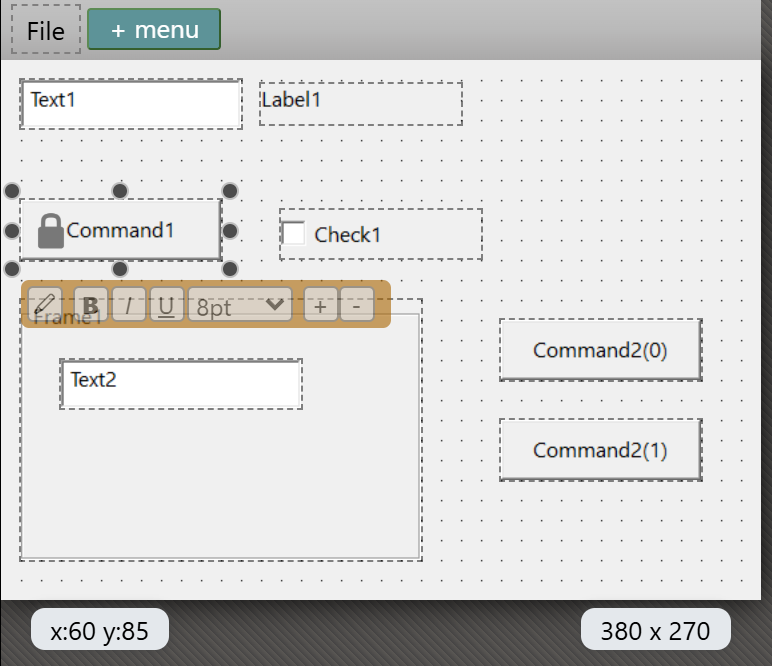

A form with Show Outlines on, so that a dashed outline surrounds every control. The command button Command1 is selected and locked: a grey lock icon shows on it and its grabbers are grey. The other buttons are unlocked.A form with Show Outlines on, so that a dashed outline surrounds every control. The command button Command1 is selected and locked: a grey lock icon shows on it and its grabbers are grey. The other buttons are unlocked.

Tab order

Holding Ctrl while the designer has the focus shows a yellow circle at the top right of every control whose TabStop is True, holding the control’s TabIndex. A control that takes no focus, such as a Label or a Frame, has no circle, and neither has a control on a CustomControls form. The circles disappear when you release the key. Ctrl is also the key that adds a control to the selection, so a Ctrl+click makes them flash.

There is no tab-order dialog and no tool that sets the order by clicking. You set TabIndex as a property in PROPERTIES. A new control gets the highest TabIndex plus one.

A form while Ctrl is held. Yellow circles at the top right of the text boxes, the check box and the command buttons hold their TabIndex values, 0, 2, 3, 5, 6 and 7.A form while Ctrl is held. Yellow circles at the top right of the text boxes, the check box and the command buttons hold their TabIndex values, 0, 2, 3, 5, 6 and 7.

Save, undo and history

A designer tab shows the dot for unsaved changes as soon as the form changes. Ctrl+S writes the file, and closing the tab asks the usual question.

Ctrl+Z and Ctrl+Y, and the Undo and Redo buttons of the toolbar, step through the changes. Ctrl+Shift+Z is not bound. The designer keeps a copy of the whole form for every step, with no limit, until you close the tab.

  • A drag, an arrow key press, a Shift+arrow press and each Format command except the spacing commands are one step each. A key held down, repeating, is one step, however long you hold it.
  • Undo does not cover the code in the .twin file.
  • After a save, the steps stay, and Ctrl+Z still undoes. After you undo to the state you saved, the tab stays marked changed.

Every real change also writes an entry to the HISTORY panel, named for the form. Double-click it to open the form’s designer. See History.

Note

In twinBASIC BETA 1005, the tooltip of a form’s entry in HISTORY ends with [line: undefined], because a form change has no line. Nothing is lost.

Note

In twinBASIC BETA 1005, a designer can be marked changed with no edit. Click a control, press Esc to select the form, and then click another control or only move the pointer over the form: the tab gets the dot, and closing asks to save. It does not happen every time. Every control is where it was, so saving or discarding gives the same form. Ctrl+Z then steps through two empty steps before it reaches your last real change.
