Building and Deployment

The day-to-day workflow for editing documentation: requirements, building, serving locally, link checking, Mermaid diagrams, screenshots, and the deployment to docs.twinbasic.com. Aimed at content contributors — if you are modifying the build pipeline itself, see tbdocs Internals instead.

Development environment

The documentation is rendered to HTML by tbdocs, a custom Node.js static site generator that lives under builder/. The day-to-day commands below are Windows batch files that wrap the generator; their POSIX equivalents (run from inside docs/) are listed alongside.

  1. Ensure the requirements below are met.

  2. Fork https://github.com/twinbasic/documentation to your own GitHub account if you plan on making any changes, or for convenience. Skip this if you only want to build the docs locally without contributing changes.

  3. Clone either your fork or the documentation repository itself.

  4. Go to the docs/ folder in the cloned working tree. Building, serving, and other documentation operations all run from this folder, not from the repository root. (The builder/ toolchain itself sits next to docs/ and is not part of the source tree the documentation is rendered from.)

Requirements

  • Node.js 22+ for tbdocs itself. The site builds offline with no Ruby toolchain.
  • npm ci at the repository root (installs the PDF renderer dependencies) and again under builder/ (installs the static site generator). The build.bat / serve.bat wrappers assume both have run.
  • Chromium is required only when rebuilding the PDF book. It is downloaded once by npx puppeteer browsers install chrome --install-deps.

The two npm ci invocations correspond to two package.json files: the top-level one for the PDF renderer (render-book.mjs, the lib/*.mjs helpers, paged.js) and the builder/package.json for the static site generator itself.

Building

To render the documentation from .md files into the _site/ (online), _site-offline/ (offline mirror), and _site-pdf/ (sparse PDF source) folders, from inside docs/:

build.bat

or directly:

node ..\builder\tbdocs.mjs --src .

A single tbdocs run produces all three trees. The also_build_offline and also_build_pdf keys in _config.yml toggle the sibling outputs; the --no-offline and --no-pdf flags do the same from the command line if you only want _site/.

The full CLI surface for tbdocs — every flag, what each one does, when to reach for it — lives on the Tools and Scripts page.

Building and local serving

The simplest local preview is build.bat followed by opening the rendered files in any browser. To get a localhost server instead, from inside docs/:

serve.bat

This runs tbdocs --serve: after an initial build, an HTTP server binds to port 4000 (pass --port <N> to use a different port), a recursive source-tree watcher fires a debounced rebuild on each file change, and any browser tab open on the page auto-reloads via SSE after each successful rebuild. Only failures (4xx, 5xx, server exceptions) are logged — successful requests are silent. Ctrl+C exits cleanly.

Before checking link integrity, the documentation must be built. From inside docs/:

check.bat

This runs two passes of scripts/check_links.mjs: one against _site/ (the online tree) and one against _site-offline/ (the file://-browsable mirror) with --forbid 'https://docs.twinbasic.com' to also flag any surviving live-site link — the offline mirror should never navigate back to the live docs site. Both checks also assert HTML well-formedness, duplicate-id detection, anchor resolution, accessibility hints, and (for the online tree) the sitemap and search-index integrity. The same two checks run in CI on every pull request and on every push to staging.

A clean check.bat run is the bar for “ready to commit”.

Mermaid diagrams

Mermaid diagrams live as .mmd source files under docs/assets/images/mmd/ and are referenced from markdown as .svg:

![Diagram](/assets/images/mmd/<hash>.svg)

tbdocs regenerates each .svg from its .mmd sibling when the SVG is missing or older than its source — editing a .mmd by one character regenerates the SVG on the next build. Both files belong in git; the .mmd is the canonical source, the .svg is the build artifact that the browser actually loads.

The renderer is @mermaid-js/mermaid-cli (a devDependency in builder/package.json). It reuses the cached Chromium the top-level puppeteer install already provides — no second download. A missing mmdc or missing Chrome cache downgrades to a warning, retains the existing on-disk SVG, and lets the build continue.

Deploying to docs.twinbasic.com

  1. Push your changes to your GitHub fork of the documentation repository.

  2. Open a new pull request in the documentation repository.

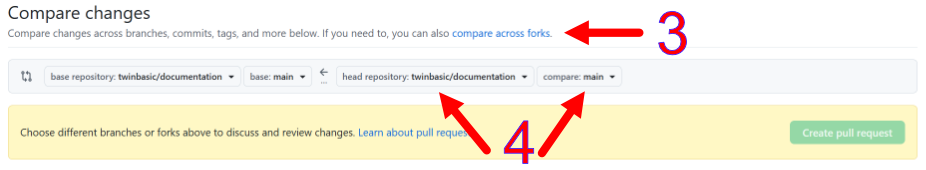

  3. Click compare across forks.

  4. Select your repository and branch to merge from.

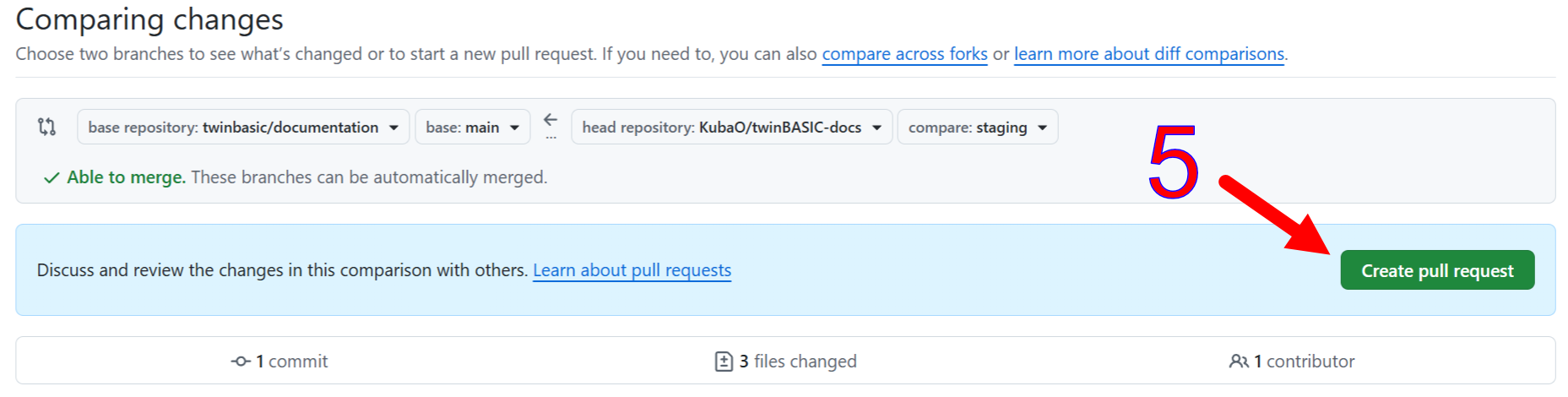

  5. Create the pull request.


    A maintainer will merge the pull request into the documentation repository. You may wish to mention an outstanding request on the #docs channel, although the #github-docs channel provides automated notifications of pull requests. Normally, a maintainer will get a notification of a new pull request via Discord, and will merge it or comment with a request for changes.

    The steps below are done by maintainers.

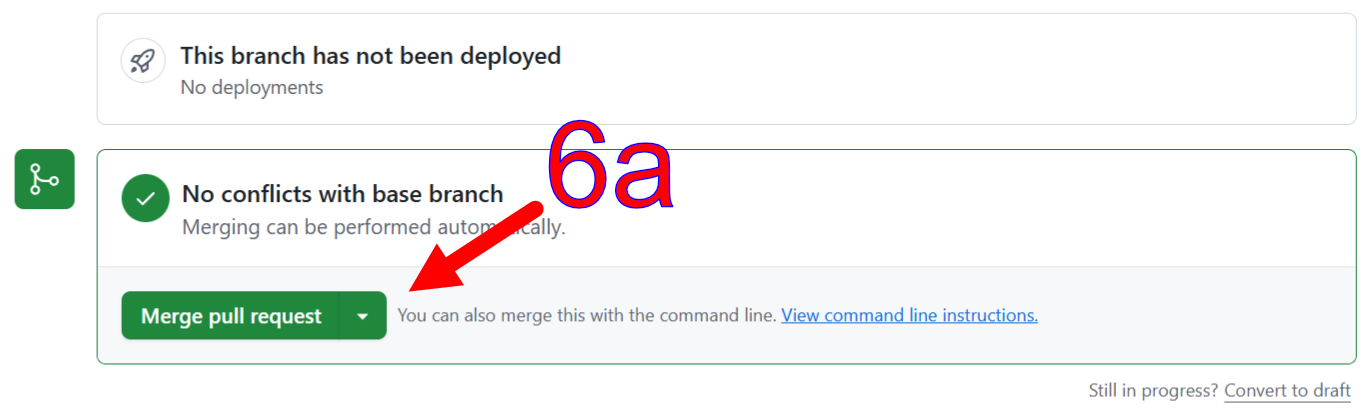

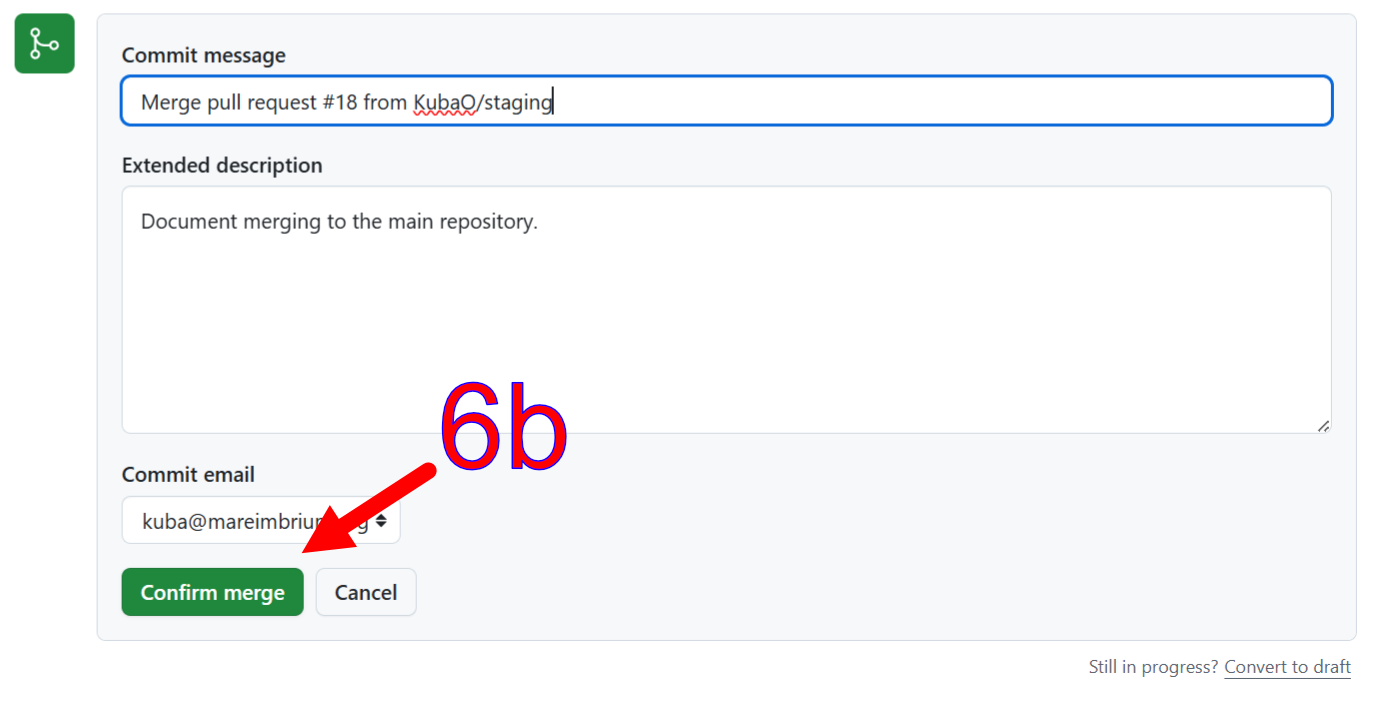

  6. Review, then merge the pull request or comment with required changes.

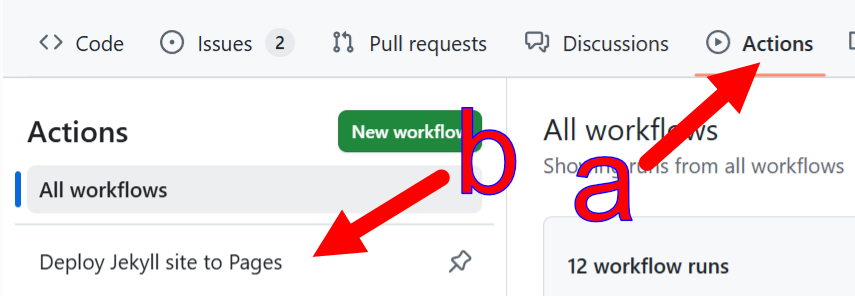

  7. Select the Build & deploy docs action. img

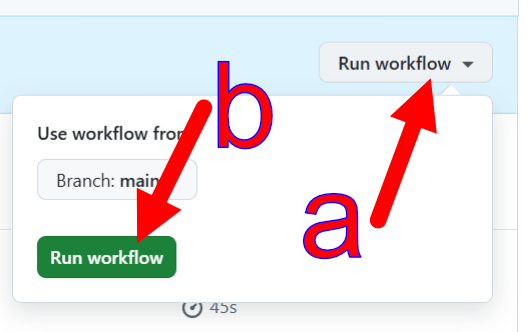

  8. Manually run the build and deployment workflow if a release snapshot is needed. (Pushes to staging deploy to Pages automatically; only the manual run additionally cuts a GitHub release with the offline-browsable site copy attached as a zip and the PDF book attached.) img

Editing screenshots

One way to edit screenshots is to use an integrated vector / pixel program like Affinity1. A possible workflow:

  1. PrtSc to capture the screenshot.

  2. In Affinity, Ctrl-Alt-Shift-N (File, New from Clipboard) to get the entire screenshot into the program.

  3. Use the Vector Crop tool (from the Vector studio) to crop the screenshot down to the relevant part.

    img img

  4. Select the cropped image and copy it to the clipboard with Ctrl-C.

  5. Create a new file from clipboard again to open a document with just the cropped screenshot Ctrl-Alt-Shift-N (File, New from Clipboard).

  6. Close the file you opened in step 2.

  7. Add arrows and labels as needed. Those can be copy-pasted from other .af files in this repository.

  8. Export to PNG via Ctrl-Alt-Shift-W (File, Export, Export…).

Note

It is a convention to put the .af (“source”) files in the _Images folder, and the exported .png files in the Images folder. Only the latter is published to the website. The former is preserved as the source for easy editing and updates.

1 Affinity is a free-as-in-beer suite that combines a vector editor, a bitmap editor, and a publishing layout editor. A Canva account is required to download; the accounts are free.
