Defining a CustomControl

A CustomControl is simply an ordinary twinBASIC class, with a few extra attributes and requirements.

Tip

It is highly advisable to look at and experiment with the sample project provided with twinBASIC before trying to implement your own CustomControl.

Custom Control Sample Project

CustomControl() attribute

CustomControl attribute

This is a required attribute for all CustomControls. You must provide the relative path to an image file within your project that can be used to identify your control in the form designer toolbox. We recommend that you put the image file in the Miscellaneous folder in your project.

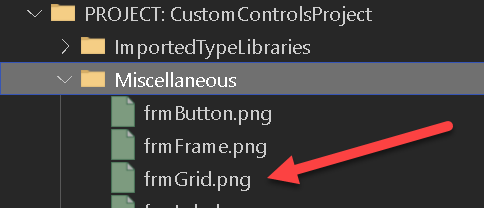

CustomControl GridImage Folder

ClassId() attribute

CustomControl ClassId Attribute

This is a required attribute for all CustomControls. You must provide a unique CLSID (GUID) in order for the form engine to work with your control.

Tip

If you enter [ ClassId () ] twinBASIC helps you out - just press the ‘insert a randomly generated GUID’ text:

CustomControl ClassId auto-generate

COMCreatable() attribute

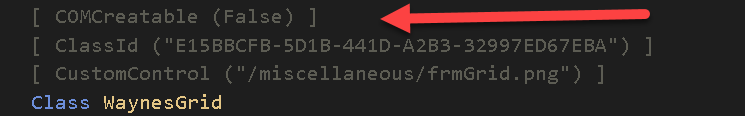

CustomControl COMCreatable attribute

This is an optional attribute, but it is usually advisable to set this attribute to False, as you don’t need to instantiate CustomControls from external COM environments.

Must implement ICustomControl

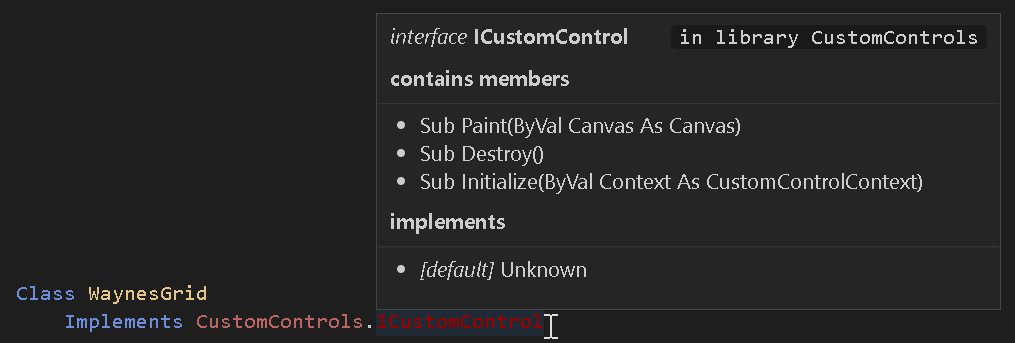

CustomControl ICustomControl interface

All CustomControls must implement CustomControls.ICustomControl. This interface currently has 3 methods that you must implement:

Sub Initialize(ByVal Context As CustomControlContext)

This method is called when your control is attached to a form. You must store the provided Context object in a class field as it offers a Repaint() method for informing the form engine that something in your control has changed and needs to be repainted.

Sub Destroy()

This method is called when your control is detached from a form. This allows an opportunity to break circular references so that your object instance can be destructed properly. The implementation for this can often be left empty provided you don’t create circular references in objects.

Sub Paint(ByVal Canvas As Canvas)

This is the most interesting part for a CustomControl. As such, it gets its own section, see Painting / drawing to your control

Minimum set of properties

As twinBASIC doesn’t yet support inheritance, you must expose a set of common properties (class fields) for all CustomControls:

Public Name As String
Public Left As CustomControls.PixelCount
Public Top As CustomControls.PixelCount
Public Width As CustomControls.PixelCount
Public Height As CustomControls.PixelCount
Public Anchors As CustomControlsPackage.Anchors = New CustomControlsPackage.Anchors
Public Dock As CustomControls.DockMode
Public Visible As Boolean

The form designer and the form engine work with these properties, so it is important to include them in your CustomControl class. The types used here are all defined in the framework: PixelCount, DockMode, and the Anchors style object.

Note that the form designer works with pixel values which are not DPI-scaled. So the Left/Top/Width/Height properties of your control do not reflect DPI scaling. For example, if your control has a width of 50 pixels, then at DPI 150%, then the actual drawing width is 75 pixels ( see Painting / drawing to your control).

Must load its property values in Initialize

The property values set for your control in the form designer are loaded by your Initialize method. The Context object passed to it offers a GetSerializer() method, and the serializer that it returns offers a RuntimeUISrzDeserialize() method, which copies the saved values into your control’s properties:

Private Sub OnInitialize(ByVal Context As CustomControls.CustomControlContext) _
        Implements CustomControls.ICustomControl.Initialize
    If Not Context.GetSerializer.RuntimeUISrzDeserialize(Me, False) Then
        InitializeDefaultValues     ' nothing was saved yet; you implement this
    End If
    Set Me.ControlContext = Context
End Sub

See Property Sheet and Object Serialization for further information, and SerializeInfo for the serializer’s other members — the design-mode flag, the runtime / report mode, and the owner window handle.
